IPC-V1-8CH-8IO-A1 New
Digital IPC Series

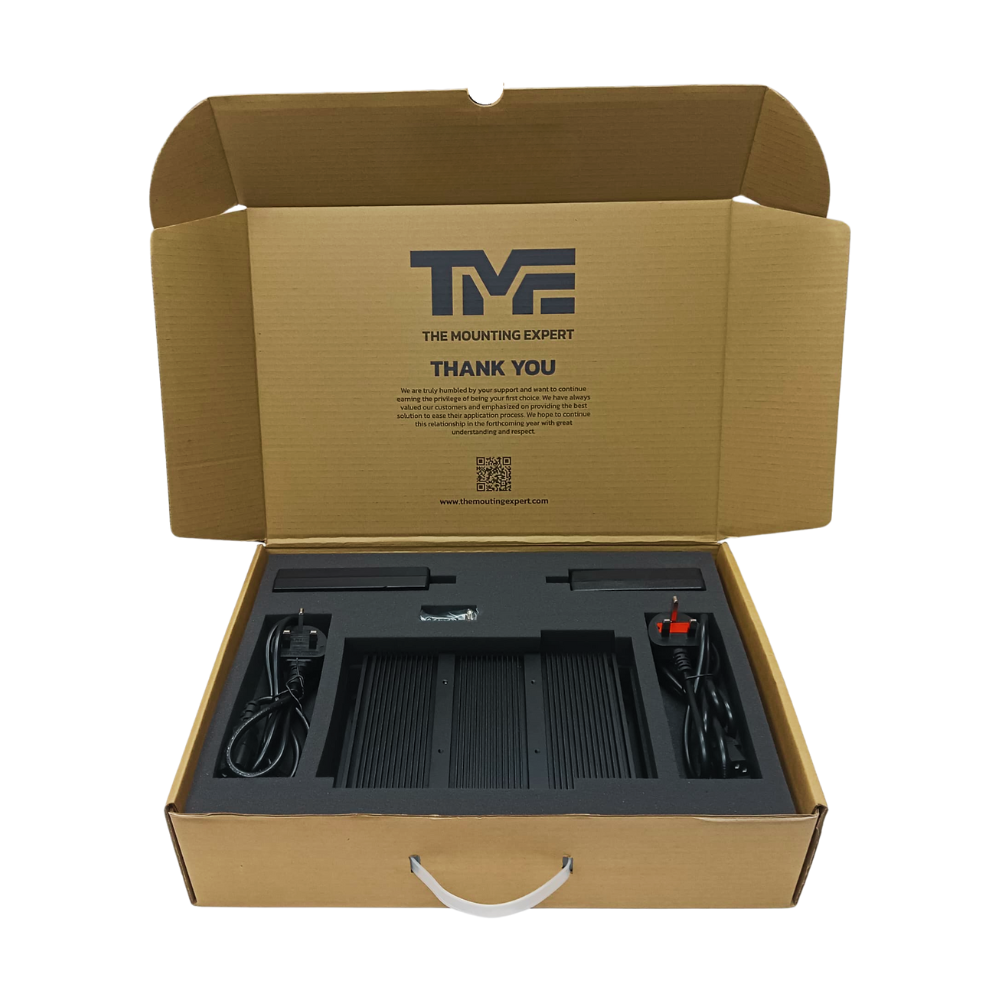

Controller Picture
Description
Physical Size
Length / X
[mm]
250
Width / Y
[mm]
153
Height / Z
[mm]
55.74
Weight
[g]
-
Electrical Specification
Controller Input Voltage (DC)
[V]
12 / 24
Lighting Input Voltage (DC)
[V]
5 / 12 / 24 / 48
(According lighting voltage rating)
(According lighting voltage rating)
Lighting Output Voltage (DC)
[V]
5 / 12 / 24 / 48
(According lighting voltage rating)
(According lighting voltage rating)
Lighting Output Constant Current
[Amps/Channel]
1
Lighting Output Strobe Current
[Amps/Channel]
1
Controller Specification
Channel
8
Mode
Constant, Strobe, Trigger
Communication Type
RS232
Communication Protocol
ASCII
Intensity Control Type
Software
Digital Input
8
Digital Output
4
Strobe Width
[ms]
0 - 99.99
(0.01ms/step)
(0.01ms/step)
Trigger Response Time
[µs]
25
Intensity Control
Multiplier Control
1-10
Constant Intensity Control
0-255
Strobe Intensity Control
0-255
Trigger Intensity Control
0-255
Features
LCD
❌
Cooling Fan
❌
Temperature Monitoring
❌
Cascadable
❌
Others
Built-In Power Supply
❌

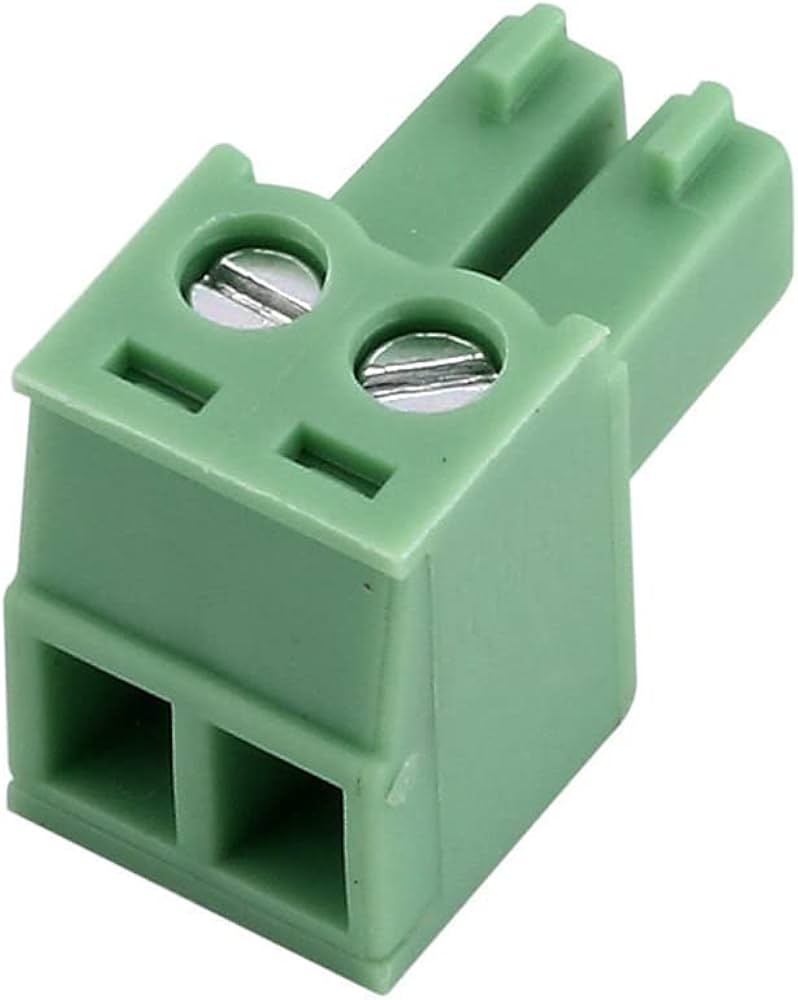

Connector
KF2EDG3.81-2P
Application
Standard
Recommended Power Supply
Supply Voltage [DC]
[V]
24
Supply Current
[A]
5
